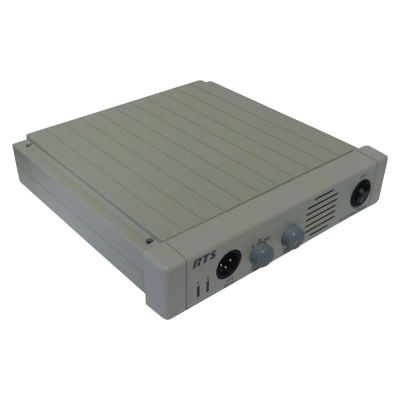

Telex RTS PS-20 Two and Four Channel Intercom Power Supply

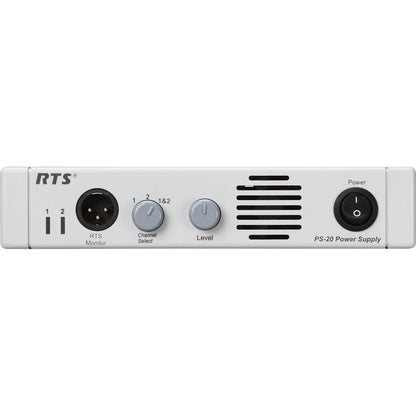

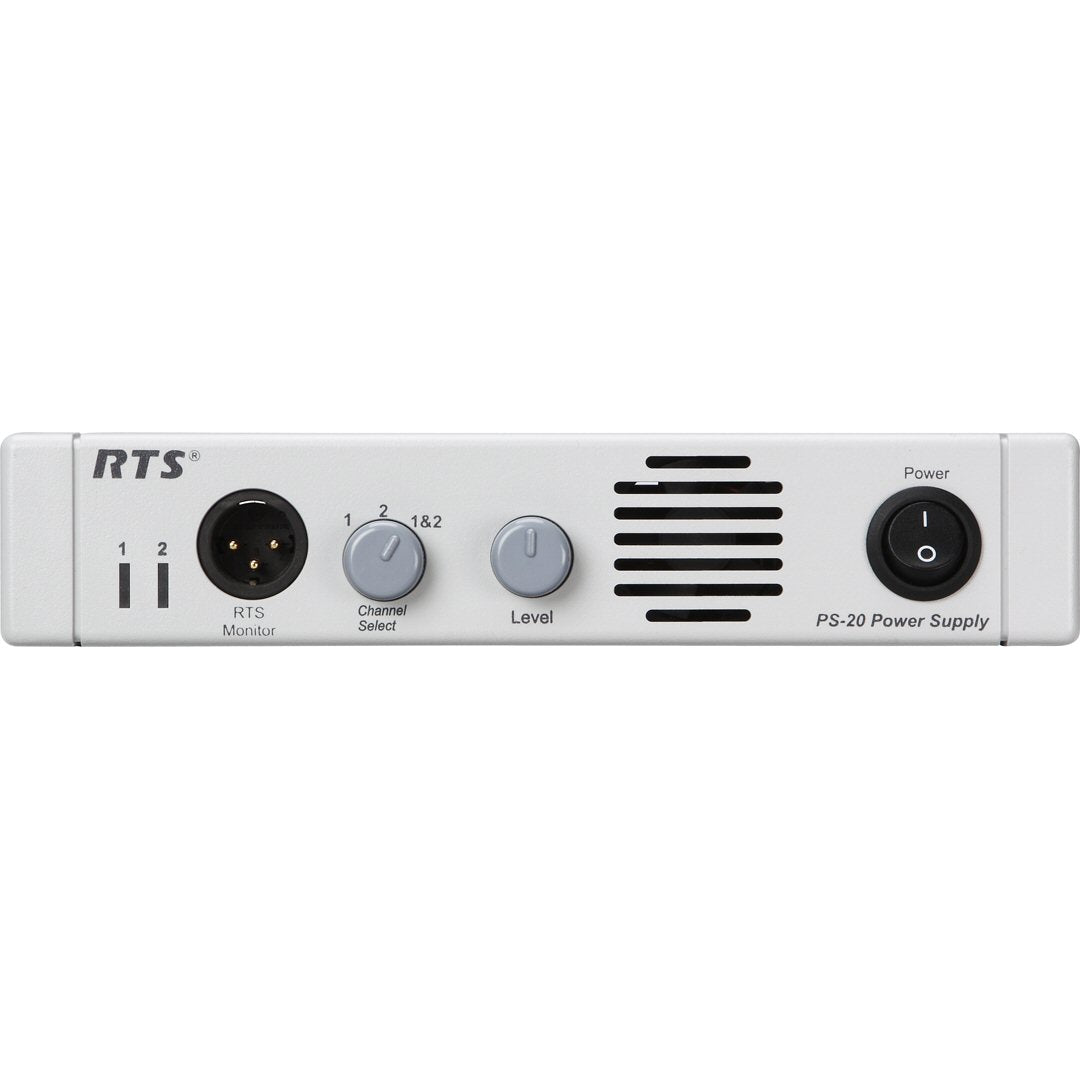

The Telex RTS PS-20 is a professional wired intercom power supply providing two or four-channel operation for RTS intercom systems. Supports BP325 beltpacks and compatible user stations. Switchable between RTS two-channel mode, RTS four-channel mode, and Clear-Com compatible mode. Built-in monitoring speaker with front panel channel select and level controls. Two audio jack inputs allow two PS-20 units to be linked for expanded capacity. Increased power output of 1.8A per channel supports more user stations than the predecessor PS-31. 1U rack mount.

Universal AC input (100–240V) makes the PS-20 suitable for use worldwide.

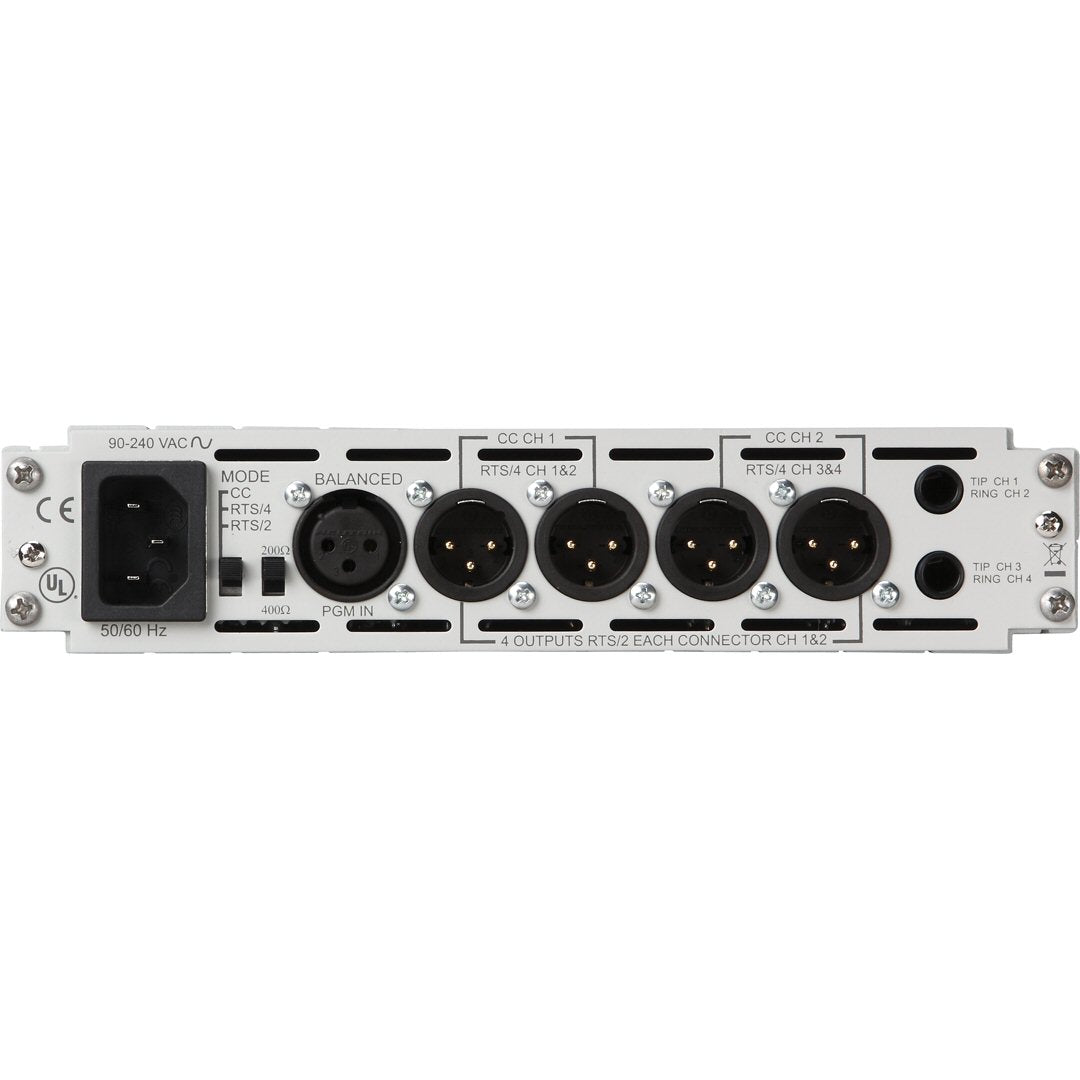

Operating modes

• RTS 2-channel mode: XLR3 male output — Pin 1 common, Pin 2 30VDC + Channel 1 audio, Pin 3 30VDC + Channel 2 audio
• RTS 4-channel mode: XLR3 male output — Pin 1 common, Pin 2 30VDC + Channel 1 or 3 audio, Pin 3 Channel 2 or 4 audio
• Clear-Com mode: XLR3 male output — Pin 1 common, Pin 2 30VDC, Pin 3 Channel 1 or 2 audio

Technical specifications

• AC input: 100–240 VAC, 50–60 Hz (universal)
• Output voltage: 28–32 VDC (30 VDC nominal)
• Output current: 1.8A maximum per channel
• Termination impedance: selectable 200Ω
• Ripple: <0.2V
• Programme input level: nominal +2 dBu, balanced, high impedance >10kΩ
• Two-wire output: nominal 30 VDC, unbalanced, selectable 200Ω
• Monitor output: nominal 0 dB gain for 1000 mVRMS programme input, 30 VDC nominal, 100 mA maximum
• Audio link: nominal +2 dBu, 0 dB gain
• Programme input connector: XLR3F (Pin 1 common, Pin 2 balanced +, Pin 3 balanced −)
• Audio link connectors: ¼” stereo jack — input (Tip Ch1, Ring Ch2, Sleeve GND), output (Tip Ch3, Ring Ch4, Sleeve GND)
• Dimensions: 44 mm H × 207.9 mm W (1U rack)
• Weight: under 5 lbs
• Operating temperature: 0°C to +50°C
• Storage temperature: -40°C to +70°C
• Humidity: 0–95%, non-condensing
• Approvals: CE, UL, CSA, RoHS, WEEE
• Mounting: MCP style rack kit (included) or rubber adhesive feet

Part number: F01U391554 (391554).
