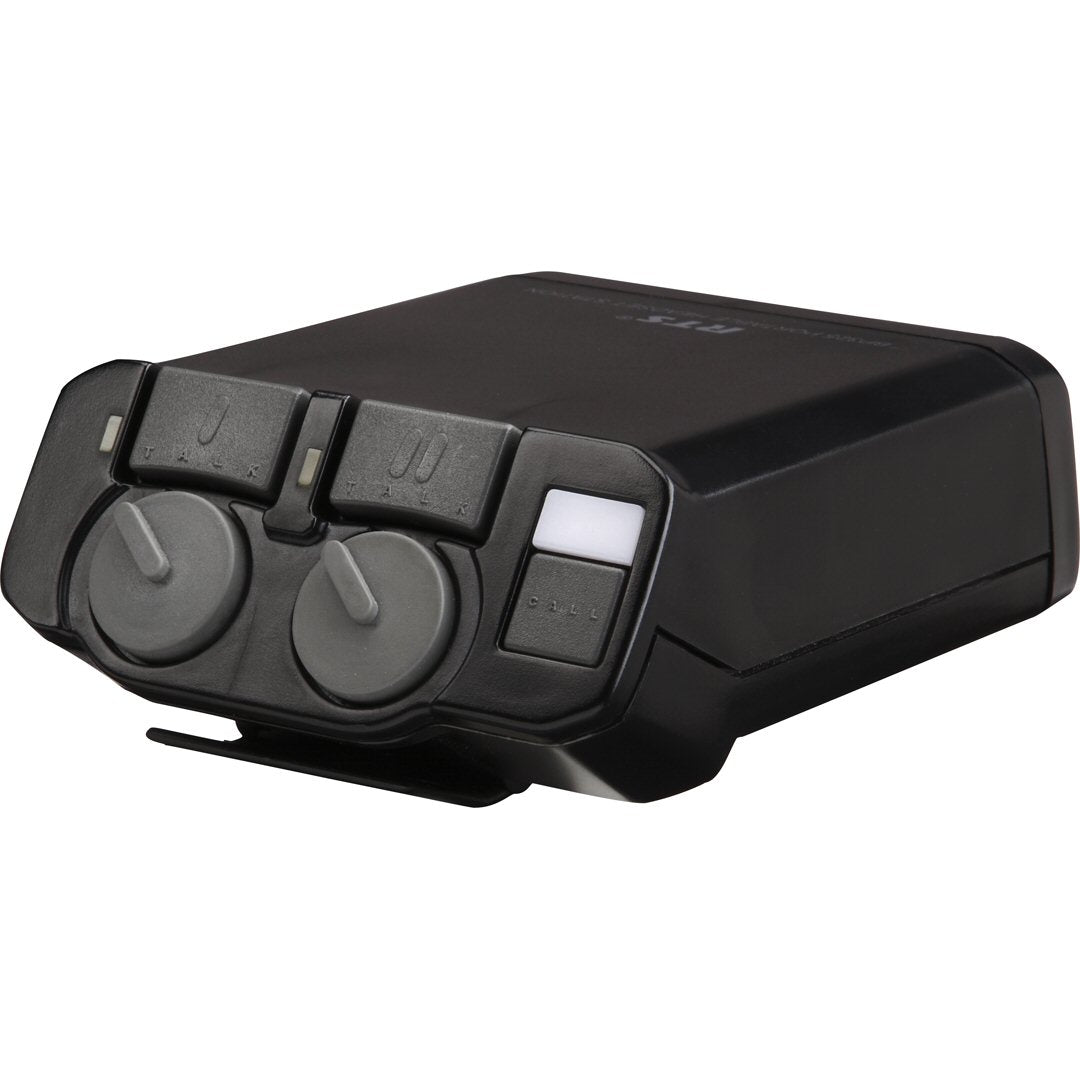

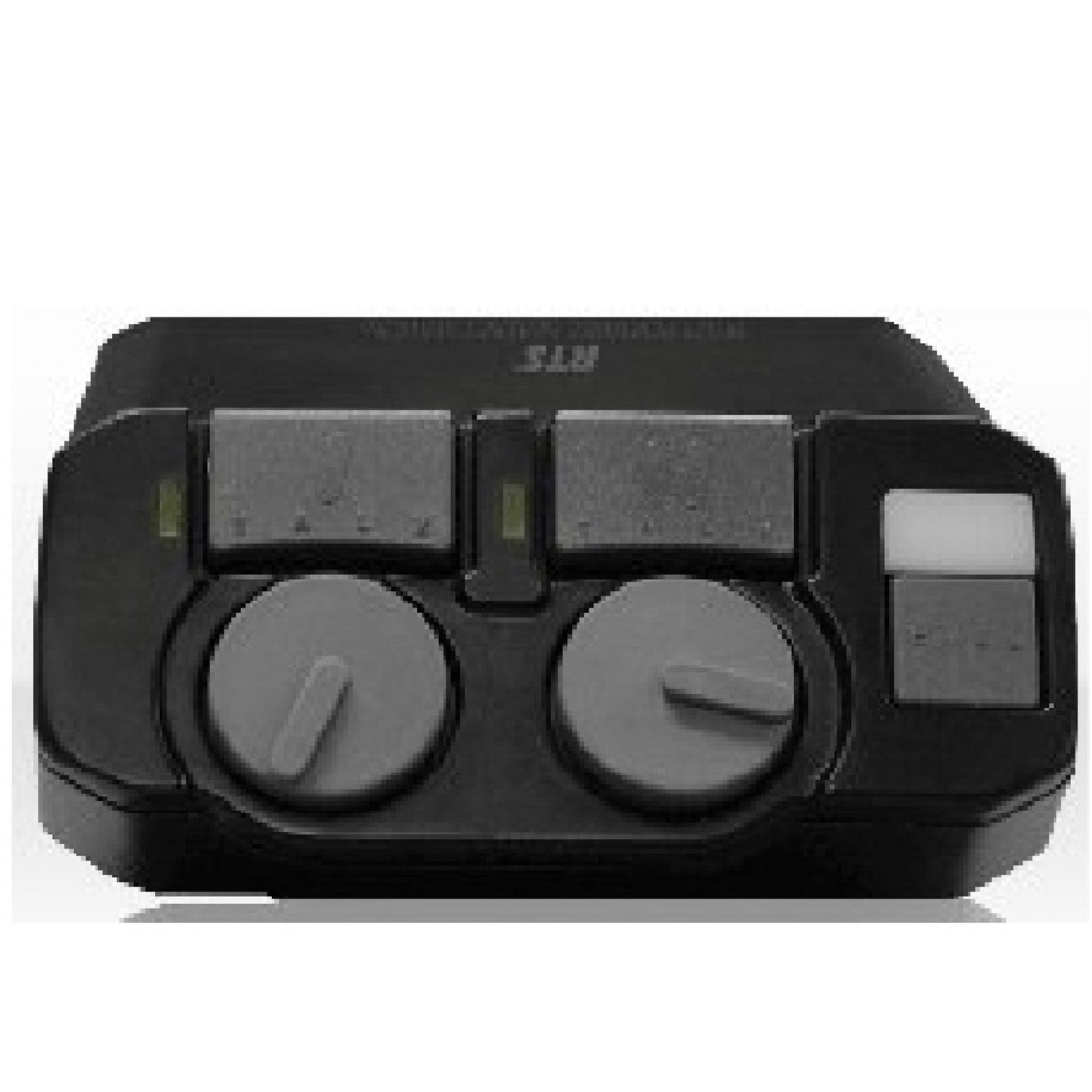

Telex RTS BP325 Two Channel Intercom Beltpack Headset Station Black

Genuine Telex RTS BP325 two-channel intercom beltpack headset station in black. A professional wired intercom user station for broadcast, theatre, live events, and outside broadcast applications. Features latching talk on both channels, call signalling, and a discrete programme input feed. Accepts XLR4 or XLR5 headsets.

Powered directly from the intercom line — no separate power supply required at the beltpack. Compatible with the Telex PS-20, PS-15, PS-30, and other standard RTS 30V intercom systems.

Installation note: RTS two-channel intercom runs both channels down a standard XLR3 cable — a significant advantage for cable runs where only a single line is available. For longer runs, use standard XLR cable with a good quality shield. Avoid starquad cable for RTS intercom — the capacitance characteristics can introduce crosstalk over distance.

Technical specifications

• Input voltage: +18 to +33 VDC, 30 VDC nominal (standard RTS line), 45–85 mA
• Impedance across intercom line: 10,000Ω typical
• Noise contribution to 200Ω intercom line: -75 dBu
• Headphone amplifier frequency response: 100 Hz–8 kHz ±3 dB
• Headphone impedance: 50–600Ω
• Headphone output power: 150 mW / 150Ω
• Headphone output voltage: 8V peak-to-peak
• Headphone maximum voltage gain: 30 dB
• Microphone preamplifier frequency response: 100 Hz–8 kHz ±3 dB
• Microphone input impedance: >1kΩ
• Microphone maximum voltage gain: 54 dB
• Microphone limiter range: 30 dB
• Programme input: nominal -10 to +8 dBu, maximum +20 dBu, 100 Hz–12 kHz ±3 dB
• Headset connectors: XLR4F and XLR5F
• Dimensions: 127 mm × 96.3 mm × 52.1 mm (H × W × D)
• Weight: 300 g
• Operating temperature: 0°C to +50°C, 0–95% humidity non-condensing
• Storage temperature: -20°C to +70°C, 0–95% humidity non-condensing

Telex part number: F01U118528.

For BP325 spare parts and accessories, visit our BP325 Spares collection.
