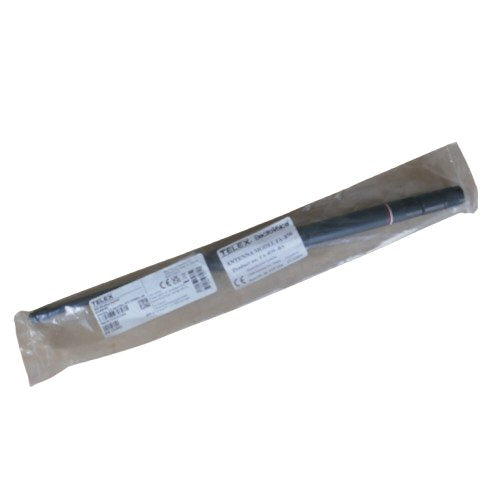

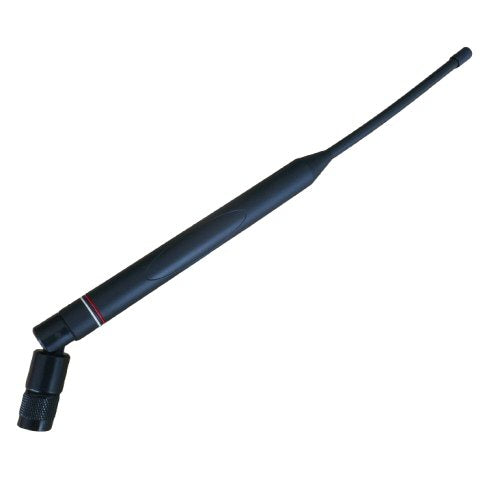

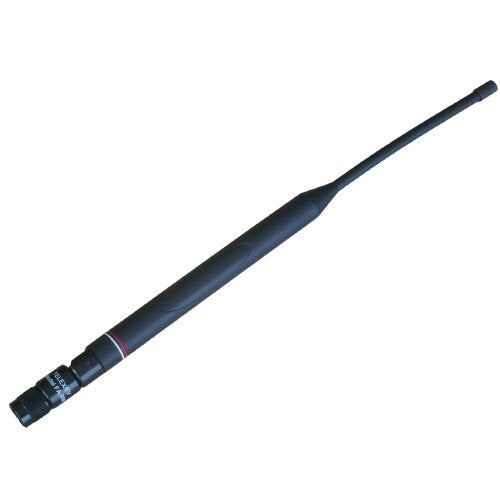

Telex BTR700 BTR800 BTR80-N Half Wave Antenna Red 470–550MHz FA-RW F01U412494

Genuine Telex replacement half-wave antenna for the BTR700 (also written BTR 700), BTR800 (also written BTR 800), and BTR80-N wireless base stations. Identified by the red band around the antenna body, just above the knuckle.

Frequency range: 470 MHz to 550 MHz

Specifications:

• Type: ½ wave, rigid (non-flexible)

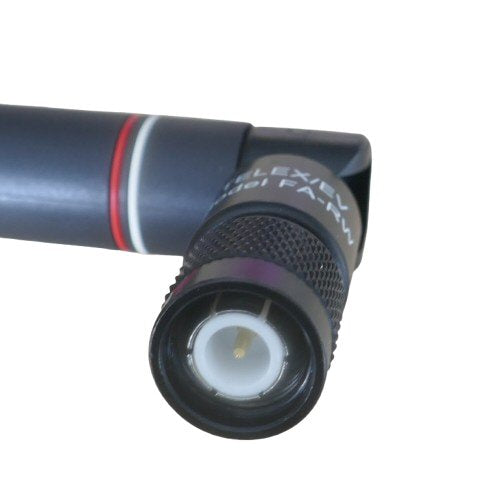

• Connector: TNC male (mounts directly to base station)
• Frequency range: 470–550 MHz

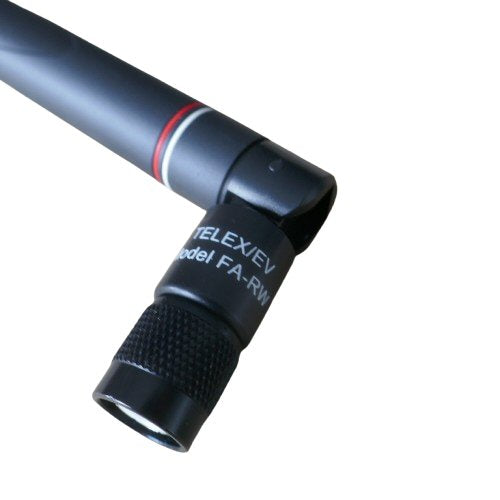

• Colour identifier: Red band above knuckle

The BTR700/BTR800 is a full duplex system requiring two antennas per base station (one Tx, one Rx). The red antenna covers the Rx position on E88 band systems only.

Ensure you select the correct antenna for your frequency band:

• Blue band (FA-BW) — 710 to 880 MHz
• Green band (FA-GW) — 610 to 710 MHz
• Yellow band (FA-YW) — 525 to 610 MHz
• Red band (FA-RW) — 470 to 550 MHz (this item)

Note: Before October 2024 this item was available as spare part F01U241420.

Telex part number: F01U412494. Model: FA-RW.

For BTR700 and BTR800 spare parts, visit our BTR700 & BTR800 Spares collection.

Showcomms has supplied Telex RTS intercom and wireless equipment for over 20 years. We stock genuine Telex parts and can advise on compatibility and sourcing. If you’re unsure whether this is the right part, please get in touch before ordering.

Important — Import Restrictions: Some countries do not permit the import of antennas by individuals. Destinations known to restrict antenna imports without a permit include Singapore, Thailand, and some other Asian and Middle Eastern destinations. We are unable to ship antennas to these destinations. Import procedures for your destination are your responsibility as the purchaser. Orders containing antennas from restricted destinations will be cancelled and refunded. An administration charge for restocking may be applied and deducted from your refund.
