Telex BTR700 BTR800 BTR80-N Half Wave Antenna Yellow 525–610MHz FA-YW F01U412495

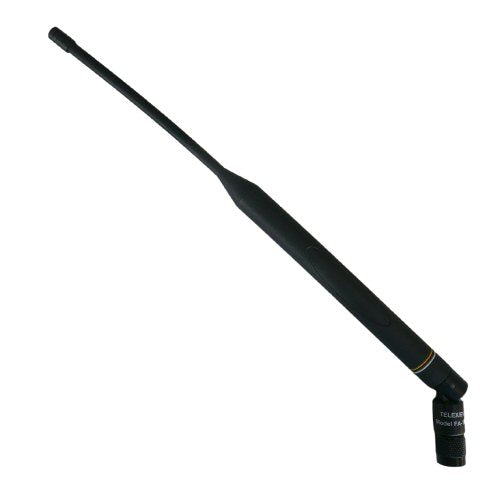

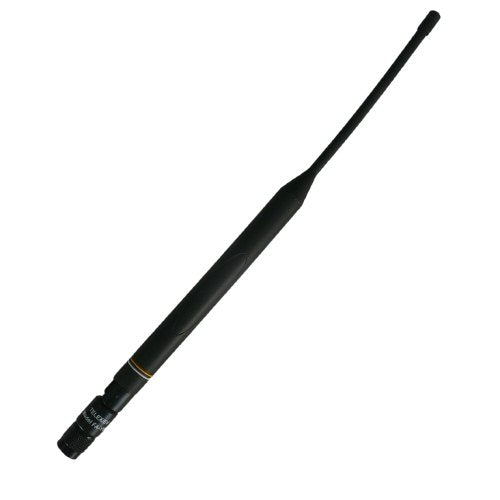

Genuine Telex replacement half-wave antenna for the BTR700 (also written BTR 700), BTR800 (also written BTR 800), and BTR80-N wireless base stations. Identified by the yellow band around the antenna body, just above the knuckle.

Frequency range: 525 MHz to 610 MHz

Specifications:

• Type: ½ wave, rigid (non-flexible)

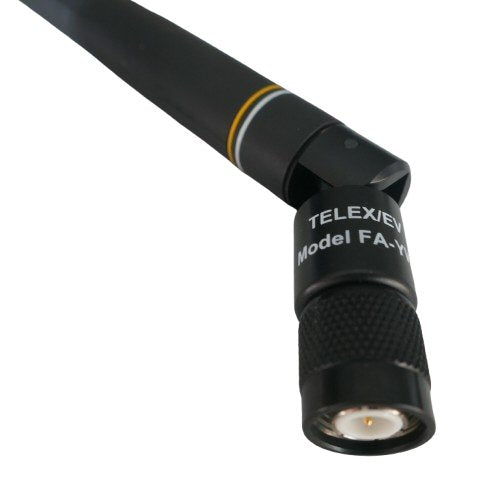

• Connector: TNC male (mounts directly to base station)
• Frequency range: 525–610 MHz

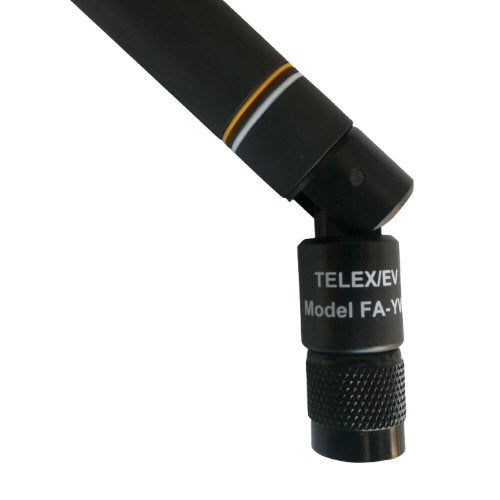

• Colour identifier: Yellow band above knuckle

The BTR700/BTR800 is a full duplex system requiring two antennas per base station (one Tx, one Rx). The yellow antenna covers the Tx position on almost all band configurations — it is the most commonly required antenna for BTR700/BTR800 systems.

Ensure you select the correct antenna for your frequency band:

• Blue band (FA-BW) — 710 to 880 MHz
• Green band (FA-GW) — 610 to 710 MHz
• Yellow band (FA-YW) — 525 to 610 MHz (this item)
• Red band (FA-RW) — 470 to 550 MHz

Telex part number: F01U412495. Model: FA-YW.

For BTR700 and BTR800 spare parts, visit our BTR700 & BTR800 Spares collection.

Showcomms has supplied Telex RTS intercom and wireless equipment for over 20 years. We stock genuine Telex parts and can advise on compatibility and sourcing. If you’re unsure whether this is the right part, please get in touch before ordering.

Important — Import Restrictions: Some countries do not permit the import of antennas by individuals. Destinations known to restrict antenna imports without a permit include Singapore, Thailand, and some other Asian and Middle Eastern destinations. We are unable to ship antennas to these destinations. Import procedures for your destination are your responsibility as the purchaser. Orders containing antennas from restricted destinations will be cancelled and refunded. An administration charge for restocking may be applied and deducted from your refund.
