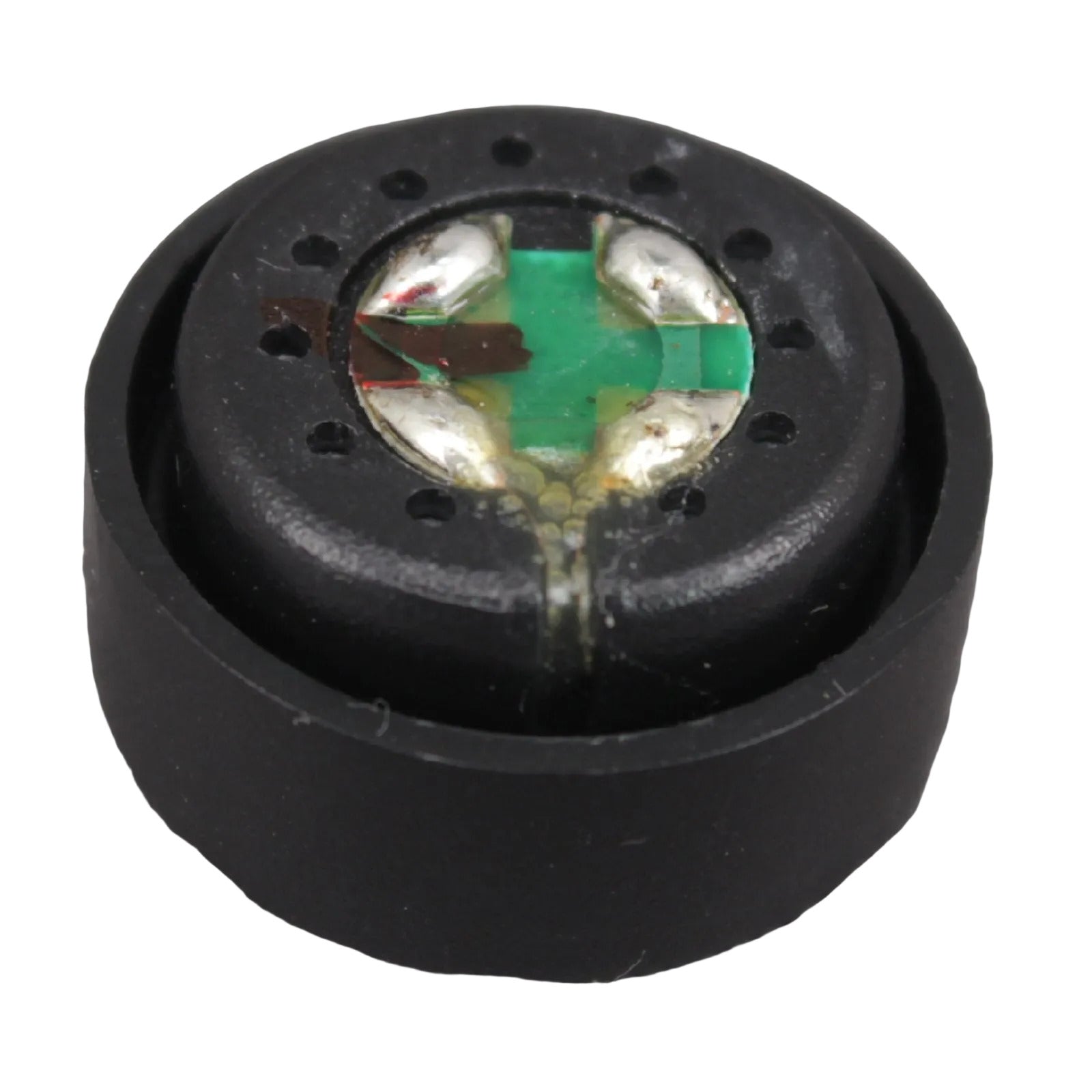

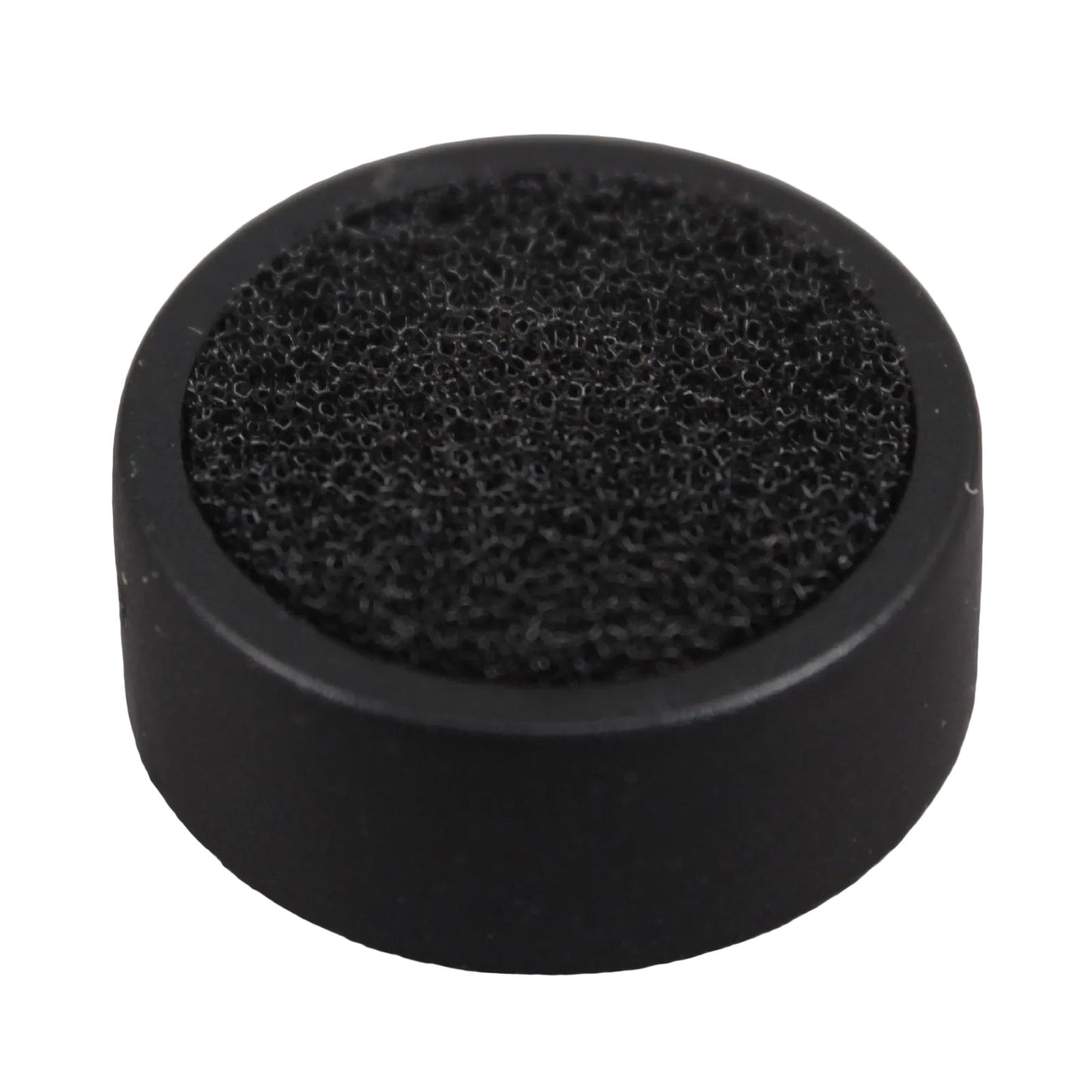

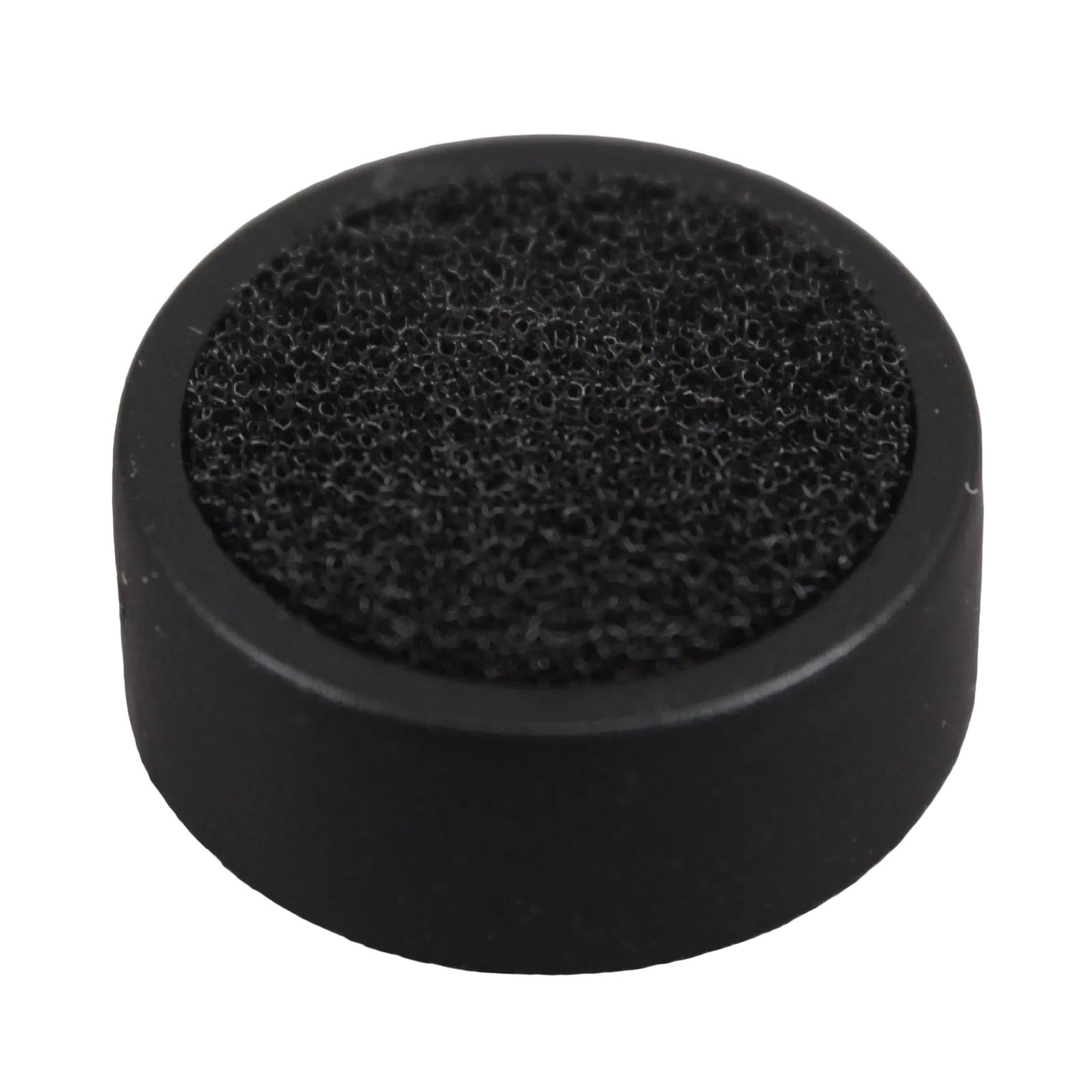

Swatcom Dynamic Microphone Capsule for Camera Headsets

Genuine A-Kabel replacement dynamic microphone capsule, 200 ohm impedance, compatible with Swatcom Camera headsets.

This is the original A-kabel spare part — the correct capsule to restore your headset microphone to full working order without compromising audio quality or compatibility.

Compatibility

• AK5850H-XLR5M Swatcom Broadcast Camera Headset
• SC33-H-XLR5M Swatcom Broadcast Camera Headset — Monocular Viewfinder

Specification

• Type: Dynamic
• Impedance: 200 ohm
• Diameter: approx. 20mm

CAUTIONARY REPAIR ADVICE:
If you are not experienced at soldering please find a competent sound engineer to replace your capsule for you.
If too hot a solder tip is applied to the solder tag terminal or applied for too long it can damage the very fine and delicate coil wire. The internal coil wire will become detached from the solder tag and your new microphone capsule will be beyond repair and outside of any warranty.
