Superlux IS103A Starter System 3 users (max of 10 users)

A complete single-channel wired intercom starter system built around the Superlux CS101A user station — the right choice where one position needs to hear comms through a loudspeaker rather than wearing a headset.

Unlike a beltpack, the CS101A has a built-in loudspeaker, making it ideal for any user who cannot or does not want to wear a headset whilst working — a sound mixer already wearing monitor headphones, a lighting user at a desk, or a showcaller who needs to hear the intercom line without a headset. Press-to-talk operation for reply. The loudspeaker can be switched off when the position needs to go quiet, and a line out allows connection to an external active speaker for larger rooms.

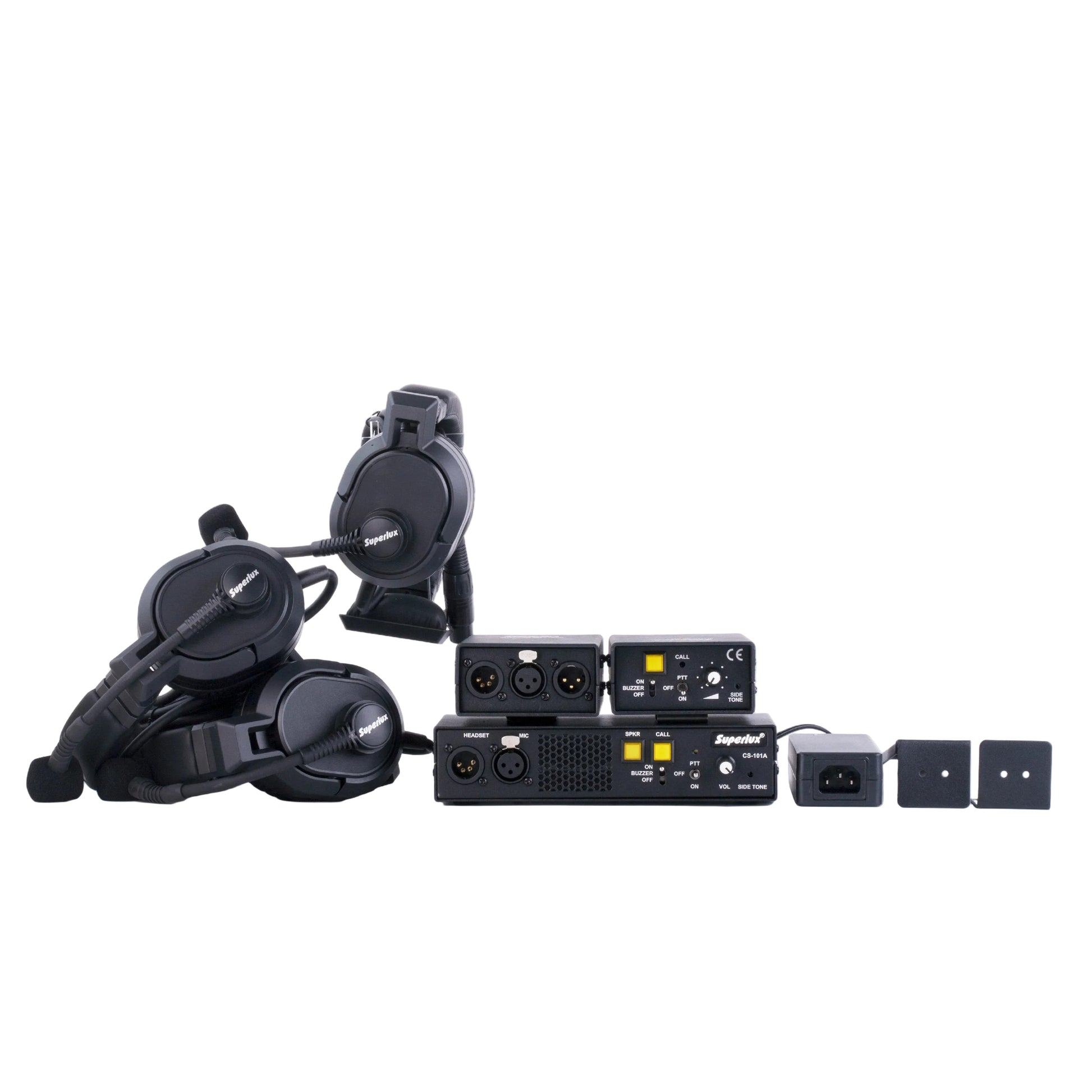

This kit includes:

• 1× Superlux CS101A compact user station with loudspeaker + rack kit
• 2× Superlux BP101 wired beltpacks (steel, black finish)
• 3× Superlux HMD685A single-sided dynamic headsets (2 for beltpacks, 1 for CS101A)
• 1× Superlux PS101A power supply (supports up to 10 users)

XLR 3-pin cable (standard microphone cable) required — not included.

Call alert on every position
Both the CS101A and BP101 feature light and sound alert — so calls are never missed even in noisy environments. The sound alarm on the BP101 is switchable.

Expandable to 10 users
The PS101A supports the CS101A plus up to 9 BP101 beltpacks. Additional BP101 beltpacks and HMD685A headsets are available separately — see related products below to expand your system up to 10 users.

Compatible with existing wired kit
Altair, ASL, Stonewood and Tecpro beltpacks are compatible with this system — useful if you already have beltpacks from another installation.

Typical applications: Theatre and live events, broadcast and sporting events, sound and lighting desks, showcalling positions, houses of worship, schools, colleges and educational institutions.

For technical advice or help specifying your system, call us on 01689 876620.

Schools and colleges: we accept local authority purchase orders — contact us prior to ordering. We may already be listed on your LA supplier system.

Technical Specifications — CS101A & BP101

• Frequency response: 20 Hz to 20 kHz
• Signal to noise ratio: ≥85 dB
• Connectors: 3 and 4 pin XLR
• Case: steel with black finish
• Dimensions: CS101A 201.5 × 105.5 × 44 mm | BP101 122 × 85 × 50 mm
• Weight: CS101A 1100 g | BP101 330 g

Technical Specifications — HMD685a Headset (Headphones)

• Transducer principle: dynamic, closed
• Ear coupling: circumaural
• Frequency response: 20–20,000 Hz
• Impedance: 400 Ω
• Sensitivity: 90 dB SPL at 1 kHz, 1 mW
• Max. input power: 100 mW
• Caliper pressure: approx. 4.5 N

Technical Specifications — HMD685a Headset (Microphone)

• Transducer principle: dynamic
• Frequency response: 150–10,000 Hz
• Polar pattern: cardioid
• Output voltage: -64 dBV/Pa (0.6 mV/Pa) at 1 kHz
• Impedance: 250 Ω
