Superlux CS-101A Remote Loudspeaker Master station (Tecpro compatible )

The Superlux CS-101A is a compact wired intercom user station with a built-in loudspeaker, housed in a 1U-height enclosure. It provides all the necessary intercom functions and connectors in a form factor that works equally well on a desk, in a rack, or at a fixed position — the right choice for any role where wearing a headset isn't practical or desirable.

A sound mixer already wearing monitor headphones, a lighting operator at a desk, or a showcaller who needs to hear the intercom line without a headset: the CS-101A puts comms in the room without requiring anyone to put anything on their head.

Showcomms is the sole UK authorised distributor for the Superlux Intercom Series, listed directly on the Superlux website. UK stock — no waiting for European warehouse shipments.

Two Modes of Operation

As a master station: when paired with the PS101A power supply (included), the CS-101A becomes a single-channel master station capable of powering up to 10 x BP101 beltpacks or other compatible beltpacks on the same line.

As a remote user station: connect directly into an existing Tecpro, Clearcom, Altair, or ASL wired intercom system via XLR — the CS-101A draws power from the intercom line, no separate power supply needed.

Built-In Loudspeaker — Switchable

The built-in speaker can be switched on or off as required — useful when the position needs to go quiet. A line out allows connection to an external active speaker for larger rooms or noisier environments. Press-to-talk operation for reply.

Specifications

Frequency response	20 Hz – 20 kHz
Signal to noise ratio	≥85 dB
Connectors	3-pin and 4-pin XLR
Case	Steel, black finish
Dimensions	201.5 × 105.5 × 44 mm (1U)
Weight	1,100 g

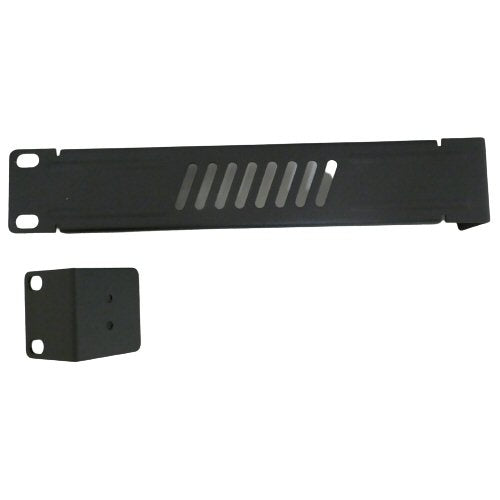

Supplied with: 1× CS-101A, 1× PS101A power supply, rack mounting side panels (half-U blank and corner mount).

From Showcomms — sole UK authorised distributor for the Superlux Intercom Series.
