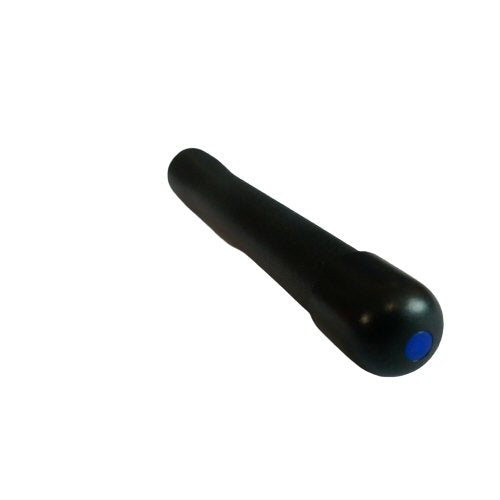

Sepura STP8000 STP9000 SC20 SC23 Extended Helical Antenna 380-400MHz (Blue Dot)

Genuine Sepura extended wideband helical antenna for the STP8000, STP8100, STP8200, STP9000, SC20 and SC23 TETRA radios. Covers the 380–400MHz UHF band. Identified by a blue dot on the tip. Length approximately 71mm.

Selecting the correct antenna

Antennas for the STP and SC20/SC23 series are selected by operational frequency band. You can identify the correct antenna by the coloured dot or the specific frequency range. Nominal gain figures are measured in free space at resonance and will degrade when used close to the body. Quarter wave whip antennas offer a modest gain advantage over extended helical antennas, particularly when the radio is worn on the belt rather than the shoulder, where body absorption is higher. VHF antenna options are also available for the SC20/SC23 — please contact us.

Extended Helical Antennas (>-1dBi)

Colour	Frequency	Part No.
Red	344–372MHz UHF	300-00652
Green	380–430MHz UHF	300-00417
Blue	380–400MHz UHF	300-00661
Yellow	407–473MHz UHF	300-00499
White	410–430MHz UHF	300-00662
Black	450–470MHz UHF	300-00663

Quarter Wave Whip Antennas (>0dBi)

Colour	Frequency	Centre	Part No.
Brown	300–344MHz	322MHz	300-00708
Green	380–430MHz	405MHz	300-00418
White	410–430MHz	420MHz	300-01031
Black	450–470MHz	460MHz	300-01032
Orange	806–870MHz	838MHz	300-00498

Technical specifications

• Nominal impedance: 50Ω
• VSWR at resonance: ≤1.5:1
• Connector type: SMA male
• Operational temperature: -20°C to +55°C (usable range -30°C to +75°C)
• Length: approximately 71mm

Part number: 300-00661.
