Sennheiser HMD 46 Dynamic Intercom Headset – Without Cable | 700313

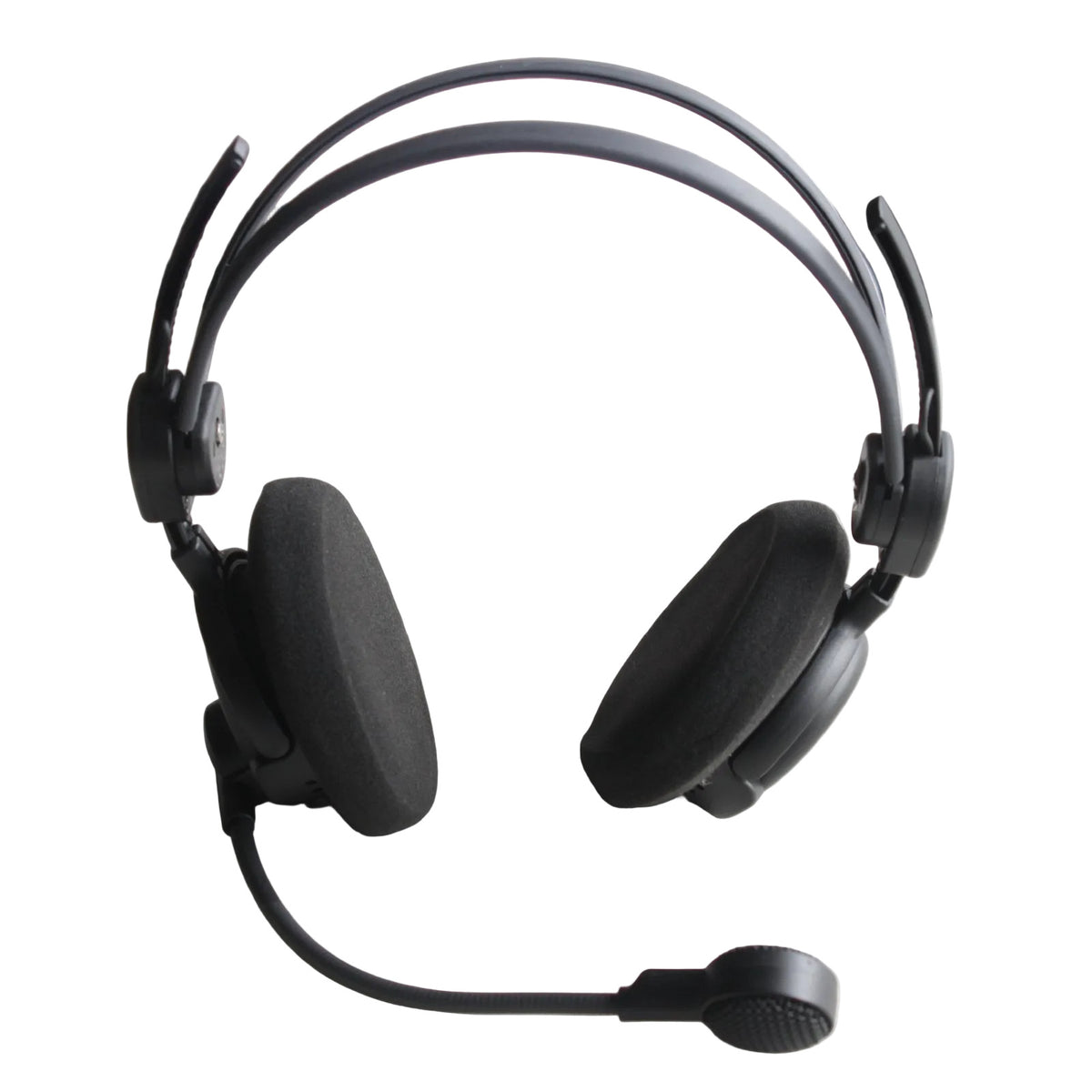

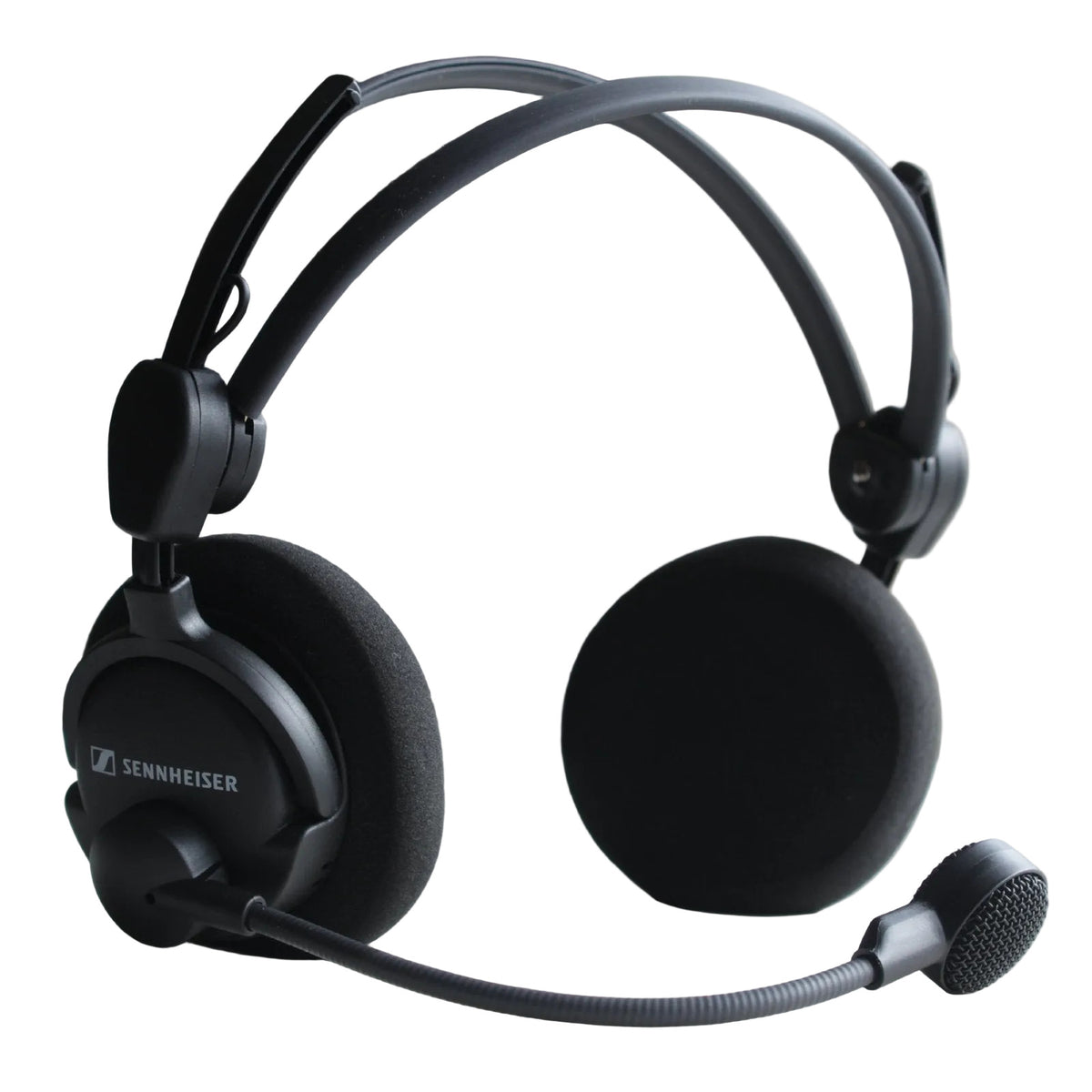

The Sennheiser HMD 46 is a lightweight, open-design broadcast headset for professional intercom communication. Its noise-compensated, supercardioid dynamic boom microphone supports clear speech, while 200-ohm stereo earphones reproduce audio from 16 Hz to 20 kHz.

Supplied without a connection cable. A compatible cable must be purchased separately.

Designed for extended intercom use

• Patented two-piece automatic headband for easy adjustment.
• Lightweight construction and soft ear pads for comfort during long working sessions.
• Flip-away earphone for single-sided listening.
• Flexible microphone boom for left- or right-side positioning.
• Exchangeable, single-sided connection cable.

Technical specifications

• Manufacturer article number: 700313.
• Acoustic design: open.
• Headphone impedance: 200 ohms.
• Headphone frequency response: 16 Hz–20 kHz.
• Microphone: noise-compensated dynamic.
• Microphone pickup pattern: supercardioid.
• Microphone frequency response: 40 Hz–18 kHz.
• Maximum sound pressure level: 123 dB SPL.
• Total harmonic distortion: below 0.1% at 1 kHz, 100 dB SPL.
• Connection: wired, cable sold separately.

Connection cable options — sold separately

• 505784 — CABLE-II-X4F: 2 m cable with 4-pin XLR female connector.
• 505785 — CABLE-II-X5: 2 m cable with 5-pin XLR male connector.
• 508546 — CABLE-II-X3K1-GOLD: 2 m cable with separate XLR-3 and 6.3 mm jack connections, with gold-plated contacts.
• 505797 — CABLE-II-8: 2 m unterminated twin cable for custom wiring.
• 508545 — CABLE-II-6: 1.85 m unterminated cable for custom wiring.

These cables fit the HMD 46 and HME 46 headsets. Select the connector and wiring required by your intercom or broadcast equipment. Cable fit at the headset does not establish compatibility with the connected equipment.
