Motorola Solutions GM0368A Car Kit for MXP600 Radio

The Motorola Solutions MXP600 Car Kit transforms your MXP600 portable radio into a virtual mobile radio, providing in-vehicle battery charging, hands-free operation, and extended TETRA and GPS coverage via an external antenna connection.

The junction box gives the portable a single interface to a range of vehicle functions — speakerphone capability, battery charging, and an entertainment mute output that silences the vehicle's audio system when a call is in progress. A microphone bias control allows the use of third-party low-bias microphones.

The three-axis rotating mounting bracket keeps the radio upright and in clear view, with easy access to buttons and keys. A quick-release button allows one-handed removal from the cradle. The USB connector supports data transfer over the TETRA network (PEI) and allows radio programming via a connected PC.

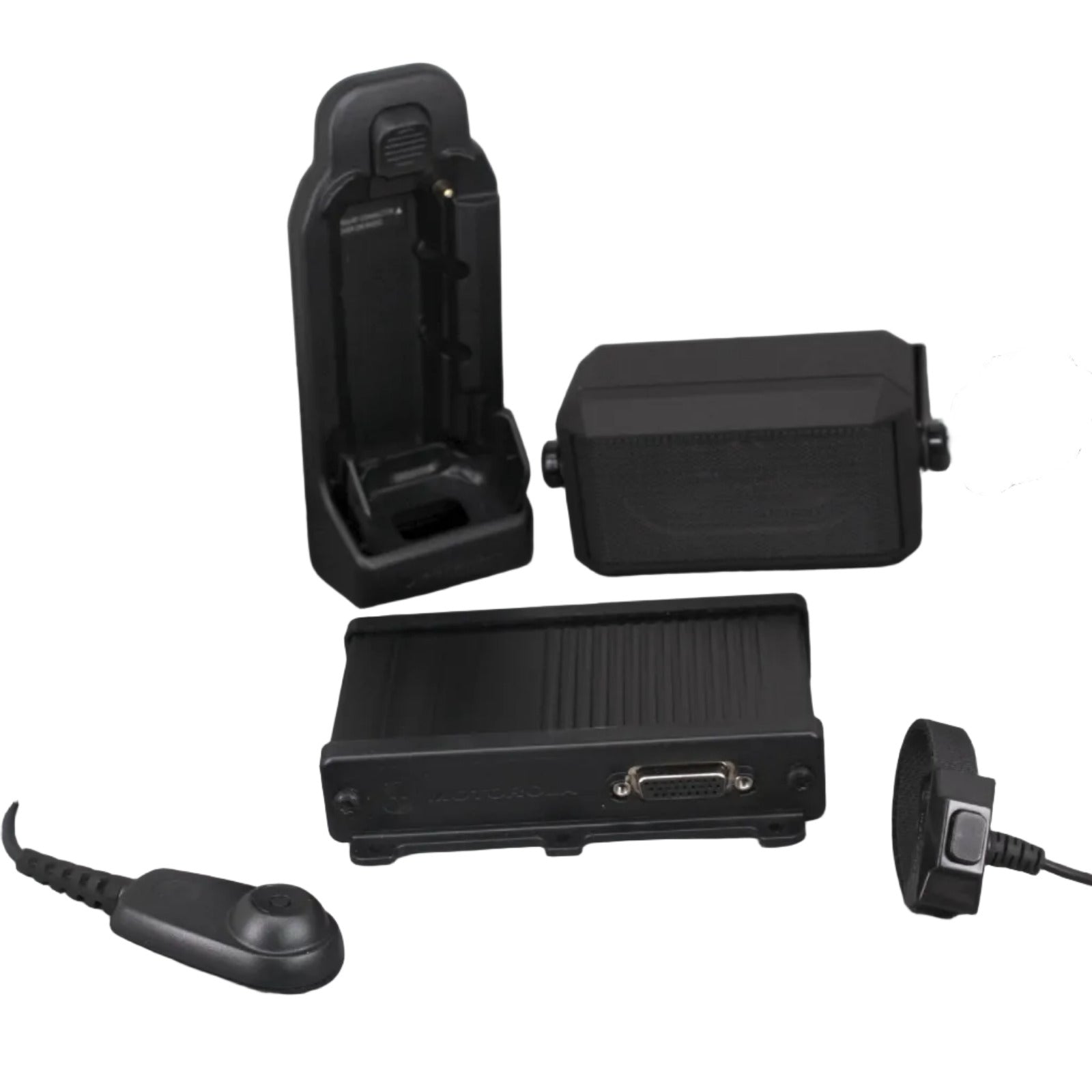

Standard Kit Contents (GM0368A):

• Car Kit Junction Box
• Standard Cradle to Junction Box Cable
• Power Cable
• Mounting Bracket for Cradle
• MXP600 Cradle with RF Connection
• Smart Visor Microphone
• 7.5W External Speaker
• Push Button PTT
• Installation Manual

Part Number	GM0368A
Compatible Radio	Motorola MXP600
Network	TETRA
USB Data	PEI data connection and radio programming
Speaker Output	7.5W external speaker included
Mounting	Three-axis rotating bracket with quick-release cradle
