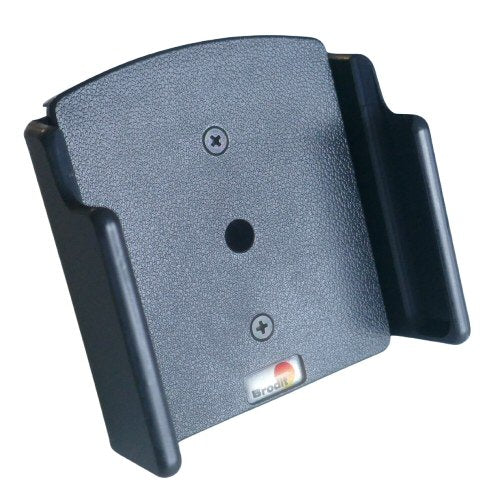

BRODIT passive Holder with Tilt Swivel 511483

Keep your device within easy sight and reach on the road with the Brodit 511483 passive holder. Safe, comfortable and convenient — it blends neatly with your vehicle's interior and holds your device firmly in an upright position for maximum cellular reception.

The adjustable holder fits devices with or without a skin. Measure your device (with skin if applicable) before ordering and compare against the specifications below.

Width	75–89 mm
Thickness	9–13 mm
Tilt range	22° in each direction
Material	Black ABS plastic
Country of origin	Sweden
Part number	511483

The tilt swivel lets you adjust the viewing angle to avoid screen glare. Attaches to a ProClip Mounting Platform (sold separately). You can connect a handsfree or charging cable to your device while it is in the holder.

Installation

1. Loosen the front screws and adjust the holder sides around your device until it is firmly held. Tighten the screws.

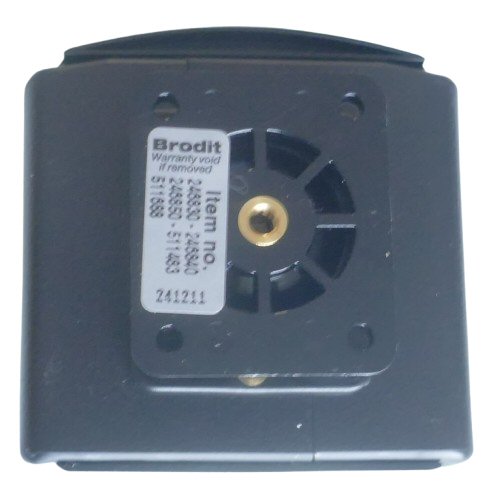

2. Loosen the centre screw to remove the tilt swivel attaching plate from the back of the holder.
3. Position the attaching plate and fix it in place with the enclosed screws. Refit the holder over the plate, start the screw thread, then pull the holder toward you while tightening firmly. Loosen slightly so the holder is secure but still adjustable.
4. The holder is ready to use.

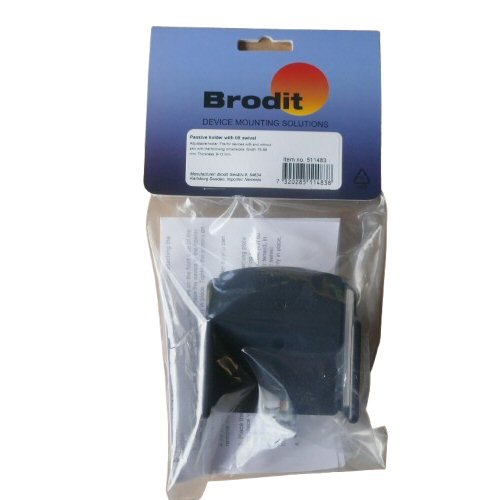

Supplied with instructions and 4 screws. Made in Sweden.
