Beyerdynamic DT250 DT280 DT290 Earshell Bow Yoke

Genuine Beyerdynamic replacement black system bow for the DT250 series headsets.

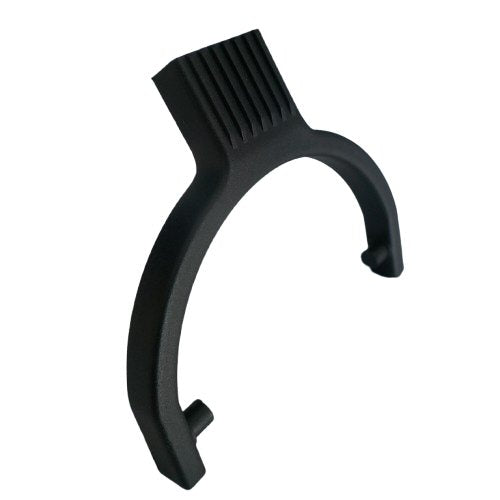

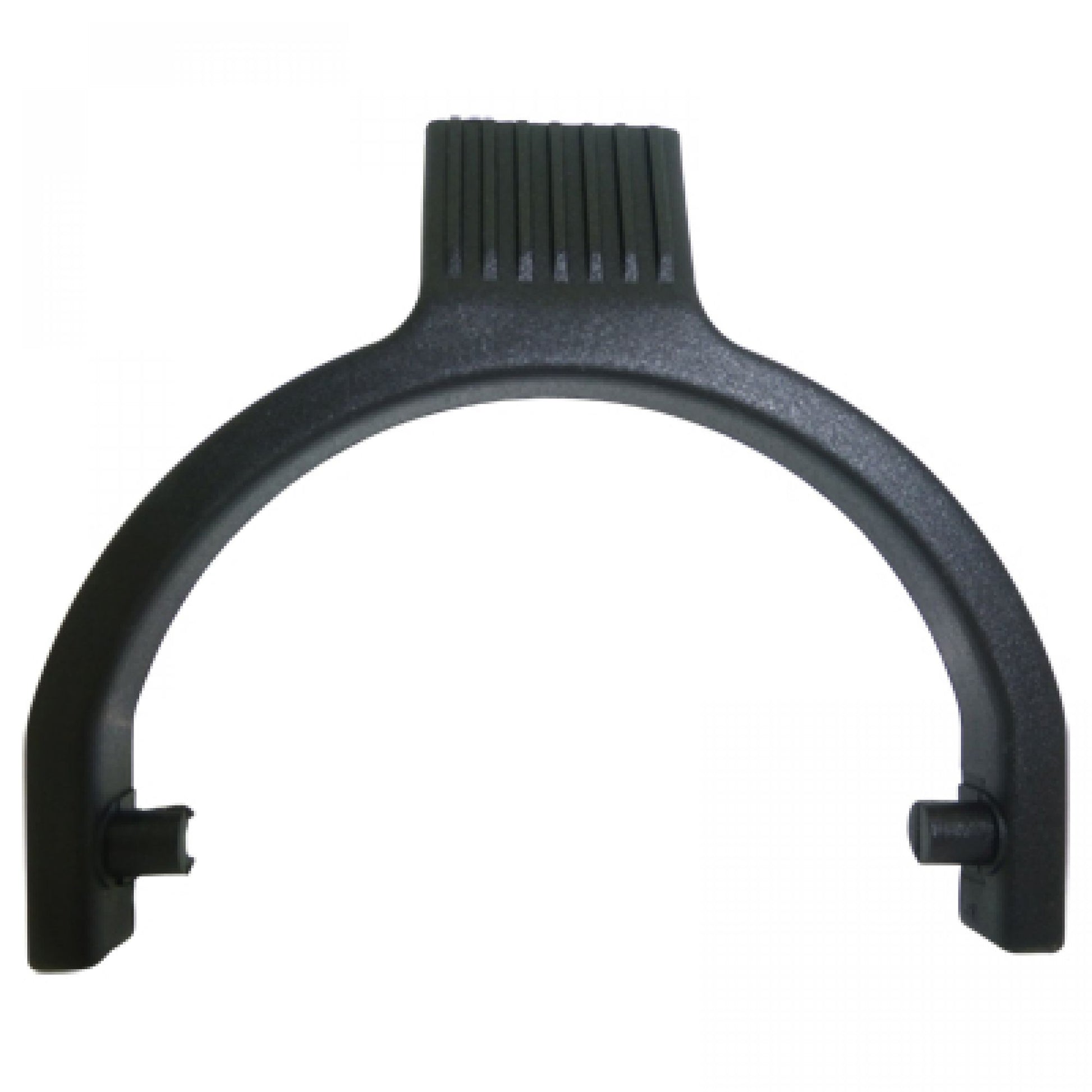

The bow is the curved arm that holds the earshell. The headband slider (part 913715) anchors into the top lug of the bow, providing the height adjustment mechanism. Unlike the straight capsule holder strip found on headphones such as the Sennheiser HD25, the DT250 system bow is distinctly bow-shaped — a curved bracket that the earshell pivots on.

The most common failure is wear on the ratchet grooves — the slider loses its bite on the bow lug and the earshell won't hold its height position. Replacing the bow restores the ratchet action and full headset function without the cost of a new headset. If the slider itself is worn, see part 913715.

Compatibility

• Beyerdynamic DT 250

Related Parts

• Headband Slider: Beyerdynamic Part Number 913715

Specification

• Colour: Black
• Also known as: System bow, earshell yoke, bow yoke

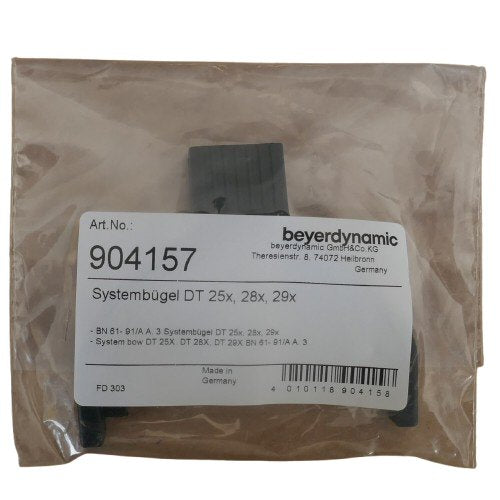

• Beyerdynamic Part Number: 904157
