Altair PS-200 Wired Intercom Power Supply (Single/Dual Channel)

Altair PS-200 Wired Intercom Power Supply (Single/Dual Channel)

The PS-200 is a compact wired intercom power supply designed for productions that need a simple, reliable intercom system without a full base station. It powers up to 60 cable intercom devices across one or two channels — making it an ideal solution for smaller venues, touring productions, and standalone cue light systems.

No Master station required

The PS-200 allows you to build a straight forward cost-effective wired intercom system without using a costly showcaller master-station unit.
Simple out of the box Plug and Use.   Beltpacks can be connected using existing XLR microphone cable, multi-way cables and installed audio tielines.

Single or dual channel

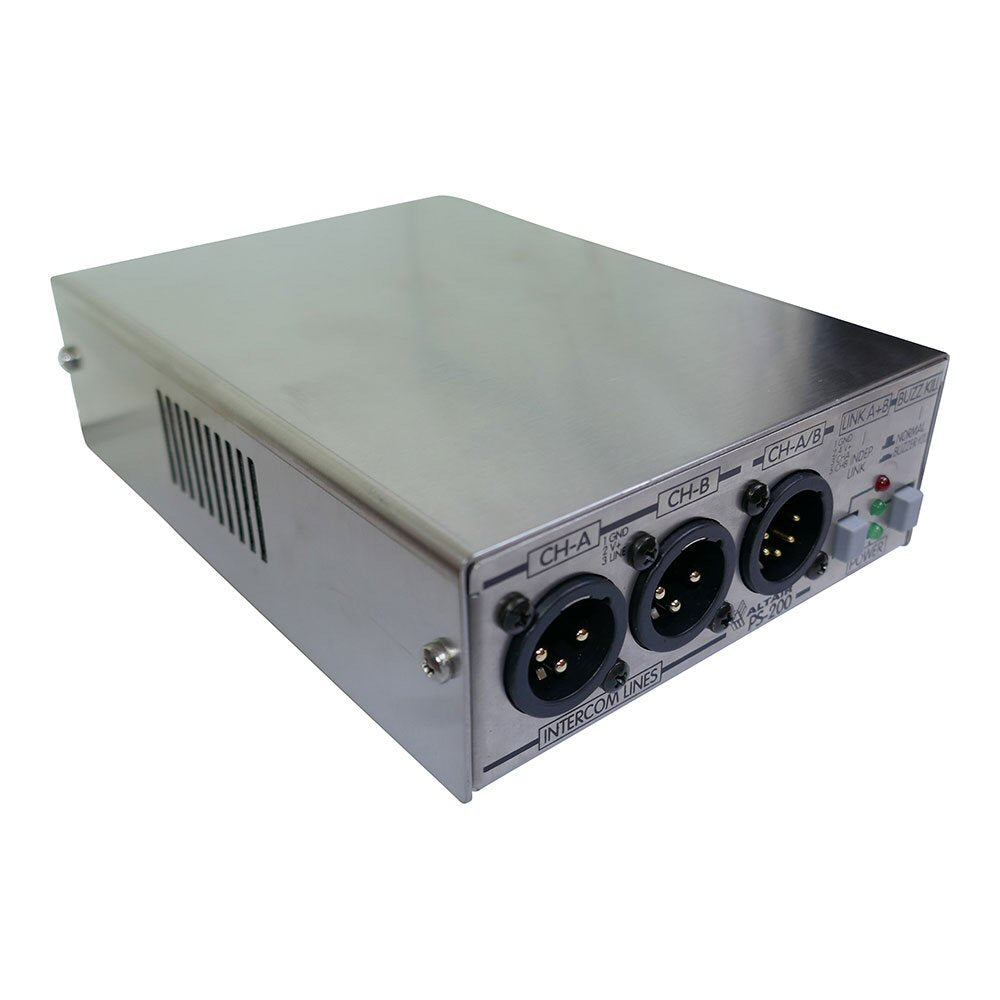

Front panel XLR connections cover Channel A, Channel B, and a combined A/B 5-pin XLR — with an A/B link switch and LED indicator for flexible single or dual channel operation.

Wired beltpack compatibility

The PS-200 has been tested and confirmed to power wired beltpacks from ASL, Stonewood, Superlux and Tecpro — making it a practical choice for venues and production companies looking to power an existing wired beltpack fleet without replacing their current equipment.

Compact form factor

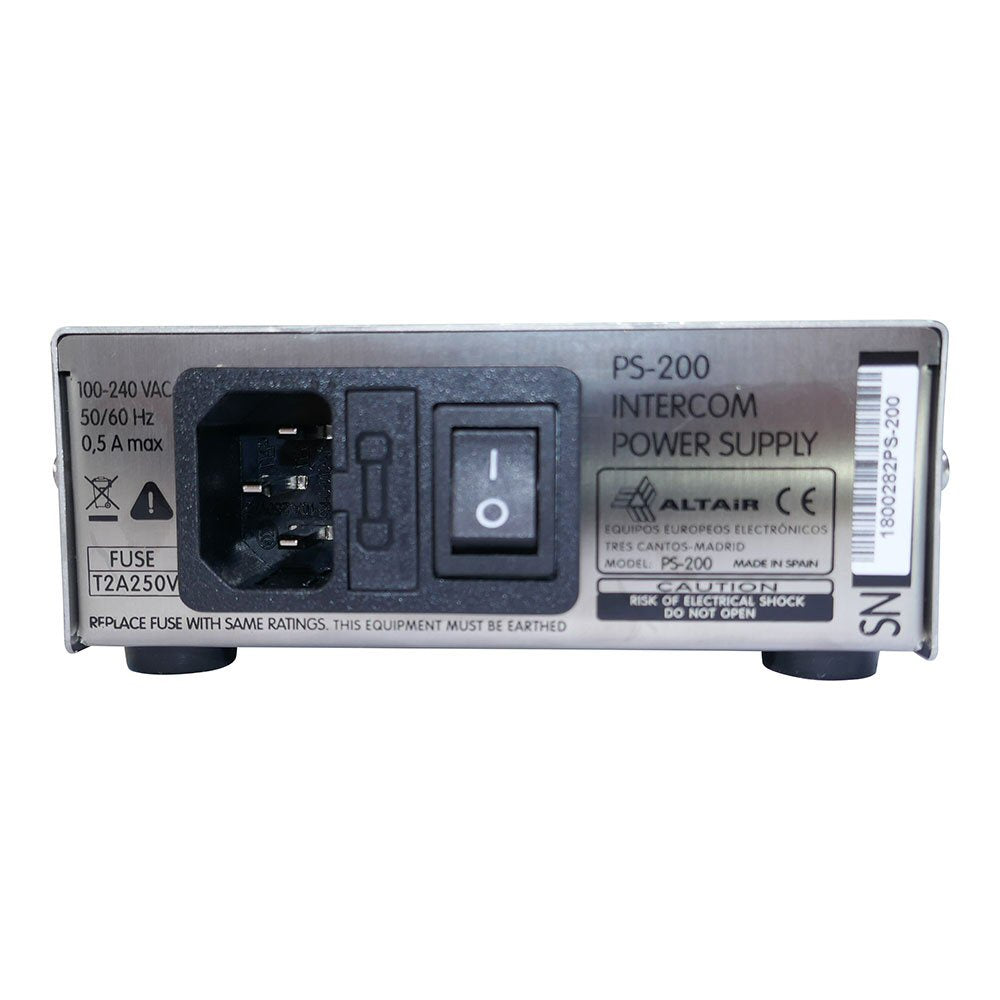

¼ rack width (110mm), 1U high, approximately 150mm deep. Rear panel IEC mains connector with fuse holder and rocker switch. Fits neatly into a rack or can be used on a shelf or table.

Optional rack ears

The OR-1-200 rack ear kit mounts the PS-200 in a standard 1U rack space. Both rack ears include pre-drilled holes for mounting up to 2 intercom beltpacks or interfaces directly alongside the unit.

Specifications

• Max devices: 60 cable intercom devices
• Channels: A, B, or A+B linked
• Front panel: XLR3M (CH-A), XLR3M (CH-B), XLR5M (A/B combined)
• Form factor: 1U × ¼ rack (110mm wide × ~150mm deep)
• Mains: IEC connector with fuse holder and rocker switch

Compatible with

• Wired beltpacks from ASL, Stonewood, Superlux and Tecpro (tested and confirmed)
• Altair wired intercom beltpacks and interfaces.
