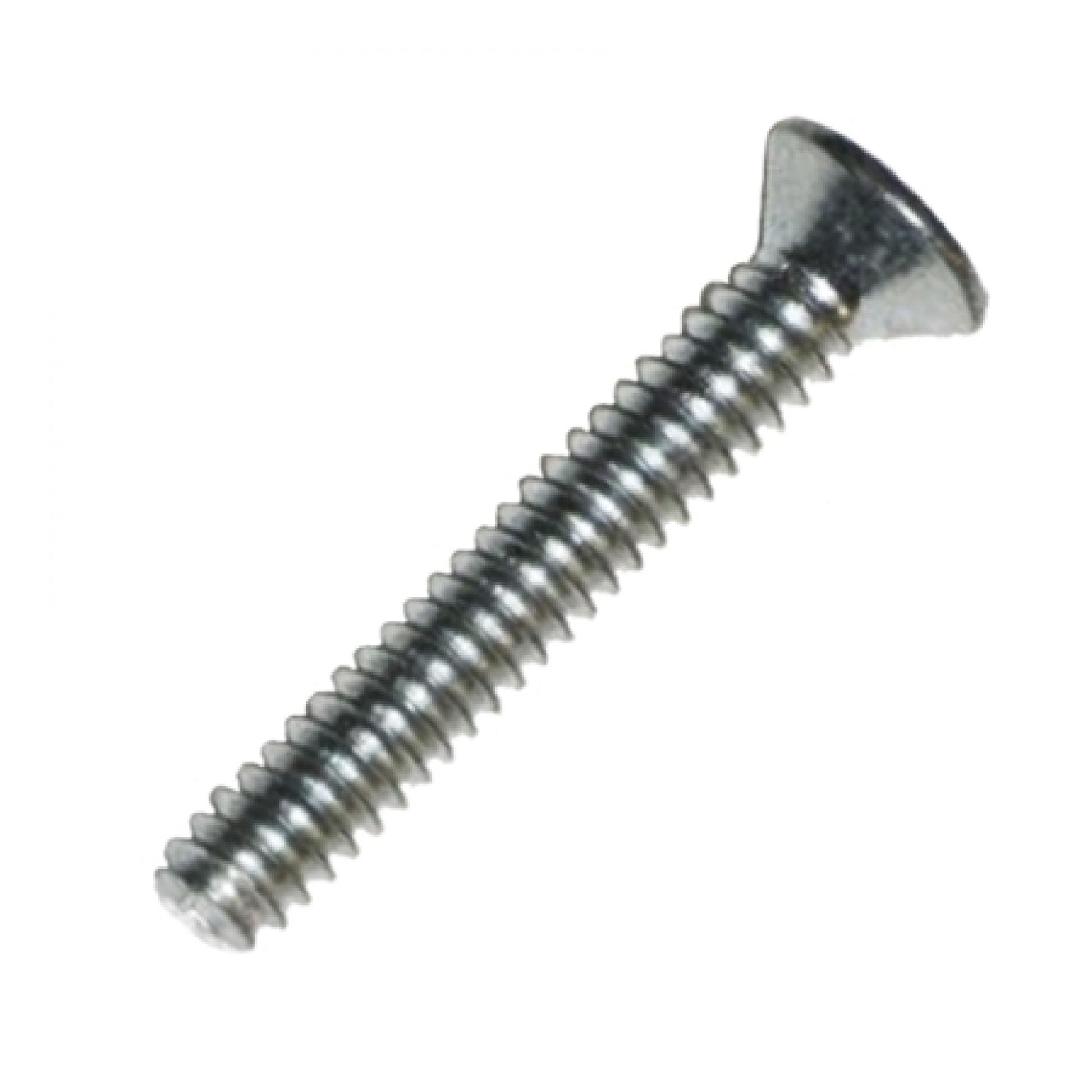

Telex RTS BP325 belt-pack Casing Screw (F01U319871)

Genuine Telex RTS replacement chassis case screw for the BP325 (also written BP 325) beltpack.

Specifications:

• Size: 4-40 x 3/4 flat head
• Thread diameter: #4 (imperial)
• Threads per inch: 40
• Length: 3/4" (19.05mm)
• Head type: Flat head

Three screws are required per beltpack to secure the main body to the lower connector housing of the BP325.

If you are reassembling a BP325 after repair and need replacement screws, this is the correct part. Experience with hire stock shows that missing screws can cause cracks in the lower casing — worth replacing all three if any are missing. A useful tip: only the middle screw needs to be removed to take off the rear cover and access the internal jumper settings.

Telex part number: F01U319871 (replaces part F01U108967). Alternative part number: 1008407600.

For BP325 spare parts and accessories, visit our BP325 Spares collection.

Showcomms has supplied Telex RTS intercom equipment and spare parts for over 20 years. We stock genuine Telex parts and can advise on compatibility, system configuration, and sourcing components that are harder to find through standard channels. If you're unsure whether this is the right part for your system, please get in touch before ordering.
